0490118 001490 Assembly stand Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300495187

NOTE: For accommodating engine, transmission and rear axle, replaced by 00 1 450 (passenger car) Release for motorcycle only! Replaced by 00 2 300 (0 495 187)

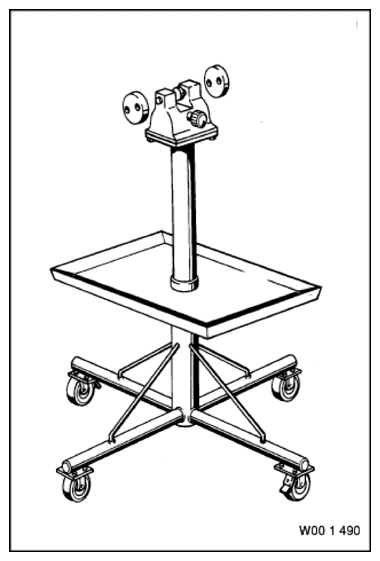

Fig 1: Identifying Assembly Stand (0490118)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

9 = 0490127 oddments tray
NOTE: (storage plate)
8 = 0490126 Wheel
NOTE: (wheel with brake) Release for motorcycle only!
7 = 0490125 Wheel
NOTE: (wheel without brake) Release for motorcycle only!
6 = 0490124 Lever
NOTE: (release lever)
5 = 0490123 Fitting aid
NOTE: (stop of mount flange)
4 = 0490122 Fuse
Note:
3 = 0490121 Fixture
NOTE: (mount flange (2 pieces required)) Release for motorcycle only!
2 = 0490120 Fixture
NOTE: (mount head without mount flange)
1 = 0490119 Frame
NOTE: (tube frame) Release for motorcycle only!
