0493778 000221 Base frame Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

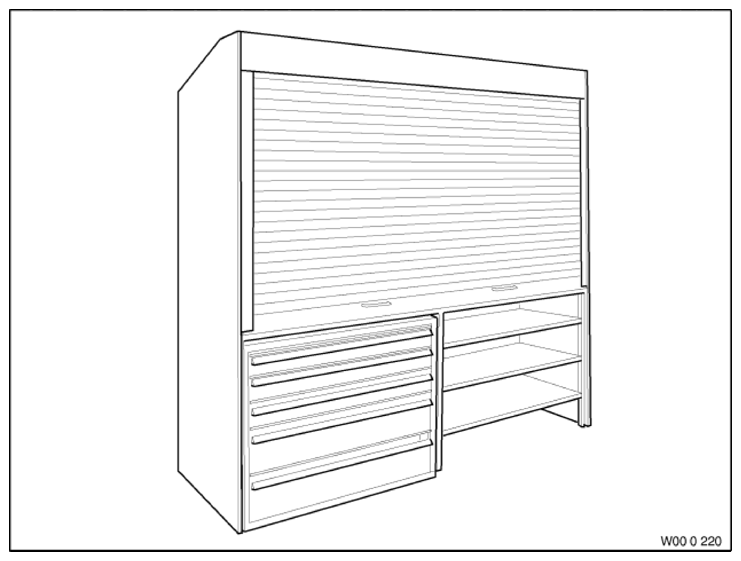

Fig 1: Identifying Base Frame (0493778)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (basic frame) Basic frame with roller-blind for constructing a separate 2 m long tool cabinet.

NOTE: For an individual order as an attachment frame, the complete delivery specification must already be present under order number 00 0 220 Overall length with a mounting frame: 4 m
