0490001 000011 Special tool board Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (special tool board I with bracket without foils) Replaced by 00 0 224

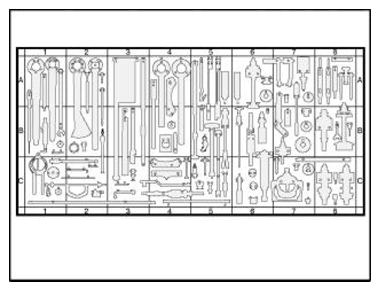

Fig 1: Identifying Special Tool Board (0490001)
G09868571Courtesy of BMW OF NORTH AMERICA, INC.
