Removing roof outer skin

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

View of passenger compartment above driver's seat.

Operation is described on the left side. Right side identical.

Release screw (1).

Release rivets (2) and remove holder (3).

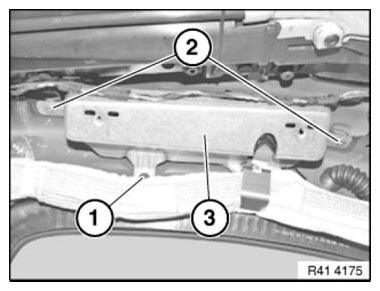

Fig 1: Identifying Screw, Rivets And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (2) and remove earth strap (2).

NOTE: Do not damage earth strap.

Replace if necessary, part number 61 12 7 213 377

Also release earth straps on left and right above rear seat.

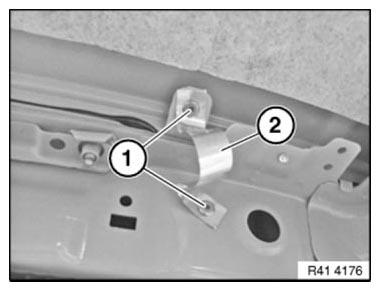

Fig 2: Identifying Rivets And Earth Strap

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only the special rivets may be used to fit the earth straps!

Heat bonded connection (6) with hot air blower until adhesive is loosened, then release.

In so doing, proceed in sections (1 to 4), starting at rear left.

Heat bonded connection (5) from passenger compartment and release.

IMPORTANT: Extract vapors and gases.

Primed surface must not be damaged.

Do not use any metallic tools.

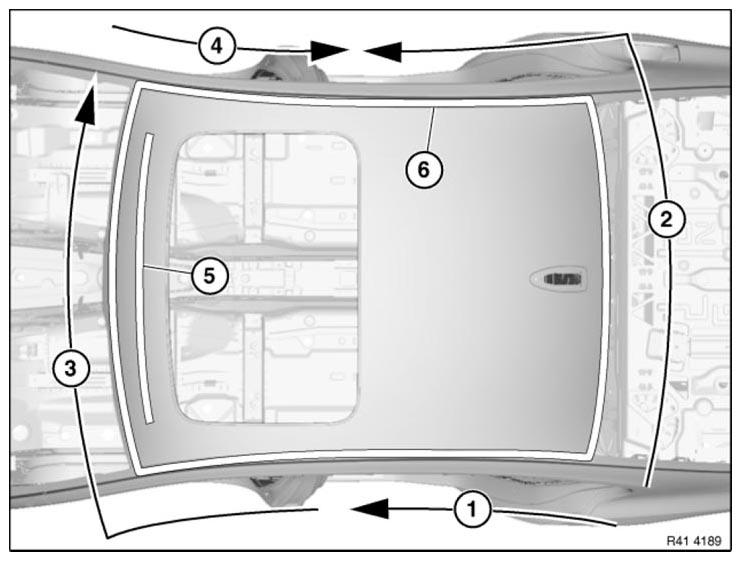

Fig 3: Identifying Starting Rear Left Sections And Bonded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully drive in plastic or wooden wedge (1) at heated section. The wedge creates tension between roof outer skin and body.

IMPORTANT: Do not exert force to drive in wedge. If the wedge cannot be driven in, continue heating roof outer skin on adhesive flange over a large area (max. 180 °C).
Carry out operation with a 2nd person helping.

Heat next section until roof outer skin has detached from body. Reapply plastic wedge. Repeat procedure until roof outer skin is completely detached.

Take off roof outer skin.

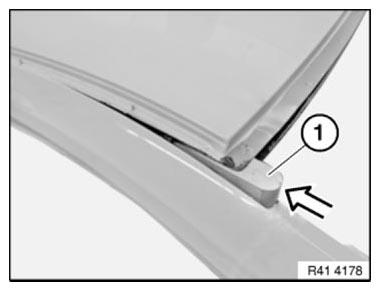

Fig 4: Driving Plastic Or Wooden Wedge At Heated Section

Courtesy of BMW OF NORTH AMERICA, INC.
