Joining and fixing roof outer skin

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Place roof outer skin with 3 helpers evenly and centrally on vehicle.

Fit rear window and roof trim strips to check correct position of roof outer skin.

Mount roof pliers (1) and secure with tensioning strap (2).

Fig 1: Identifying Roof Pliers And Tensioning Strap

G08471418

Courtesy of BMW OF NORTH AMERICA, INC.

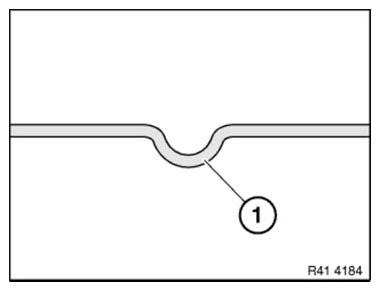

IMPORTANT: Position clamping tools only on stiffening impressions (1) in adhesive flange area of roof outer skin.
This ensures that correct distance and thus the correct amount of adhesive between the roof outer skin and the roof frame.

Fig 2: Identifying Roof Outer Skin Stiffening Impressions

G08471419

Courtesy of BMW OF NORTH AMERICA, INC.

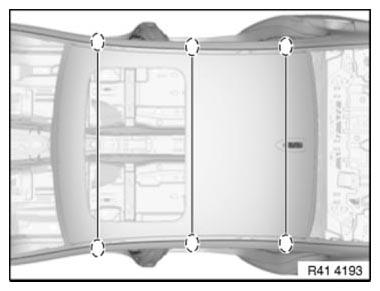

Secure roof outer skin at 3 areas with roof pliers and tensioning straps.

Fig 3: Identifying Roof Outer Skin Areas

G08471420

Courtesy of BMW OF NORTH AMERICA, INC.

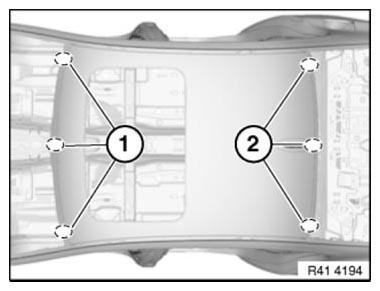

Secure roof outer skin in windscreen area 3 times with large fixing pliers (1).

In rear window area use small fixing pliers (2) 3 times.

Fig 4: Identifying Large Fixing Pliers And Small Fixing Pliers

G08471421

Courtesy of BMW OF NORTH AMERICA, INC.

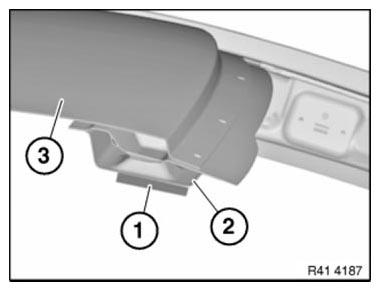

IMPORTANT: Risk of damage!

Use a suitable support (1) (approx. 50 x 50 mm) in windscreen area, as otherwise roof pillar (2) may be pressed in.

(3) Roof outer skin

Fig 5: Identifying Support, Roof Pillar And Roof Outer Skin

G08471422

Courtesy of BMW OF NORTH AMERICA, INC.
