Removal of luggage compartment floor

For purposes of clarity, graphic shows most of the tail panel removed.

Open welded connections in area (1).

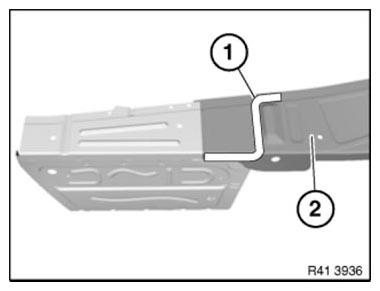

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

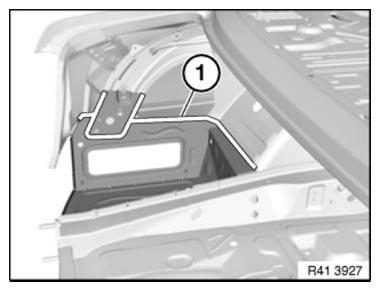

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

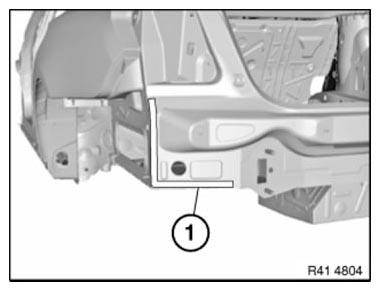

Fig 3: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Separate welded connections in area (1) from inside.

Remove the luggage compartment floor.

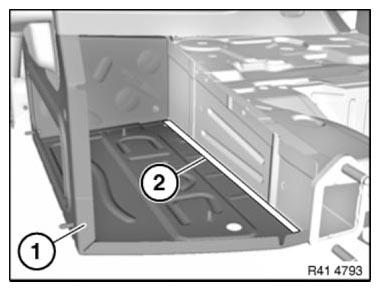

Fig 4: Identifying Luggage Compartment Floor Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in area (1).

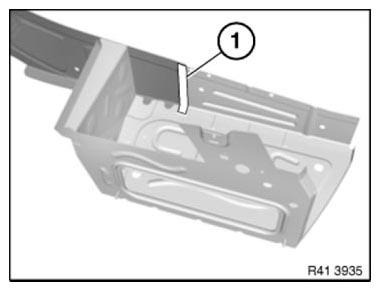

Fig 5: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove metal section (2).

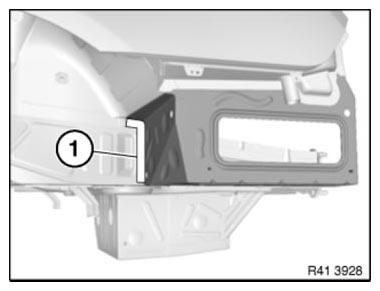

Fig 6: Identifying Welded Connections Area And Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust and secure the luggage compartment floor (1).

Set 5 4.2 mm dia. bore holes in area (2).

Fig 7: Identifying Luggage Compartment Floor And Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 3 4.2 mm dia. bore holes in area (1).

Fig 8: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 11 4.2 mm dia. bore holes in area (1).

Fig 9: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set six 4.2 mm dia. bore holes in area (1).

Remove new parts and deburr bore holes.

Fig 10: Identifying Luggage Compartment Floor Left Section Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.
