41 12 651 Replacing Left Luggage Compartment Floor Stripping Operations (Tail Panel Or Side Wall Removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect negative battery cable
- Remove rear left wheel arch cover
- Remove exhaust system
- Remove heat shield
- Remove left luggage compartment floor trim panel
- Remove left luggage compartment wheel arch panel

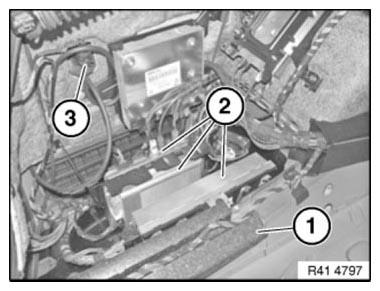

Release holder (1) for wiring harness and lay to one side.
Release holder for control units (2).
Disconnect plug connections and remove control units (2).
Remove tank venting valve (3).

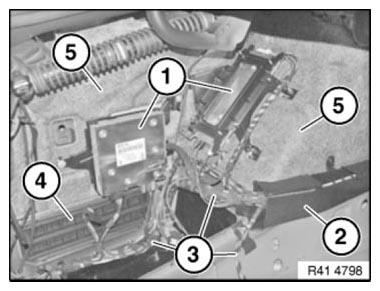

Release holder for control units (1).
Disconnect plug connections and remove control units (2).
Release cable channel (2) and wiring harness (3) and place to one side.
Release latch mechanisms and remove rear ventilation (4).
Remove soundproofing (5).
Installation note:
The rear ventilation (4) must not be damaged. (watertightness).
All latch mechanisms must engage audibly.
