Removing side members and luggage compartment floor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

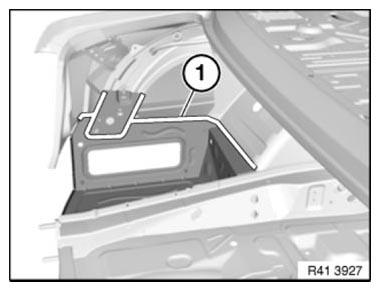

Open welded connections in area (1).

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

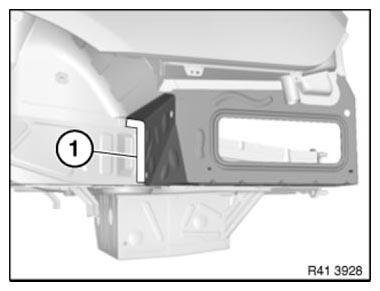

Open welded connections in area (1).

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

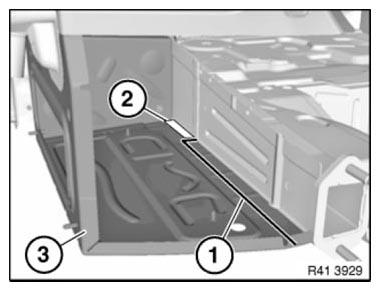

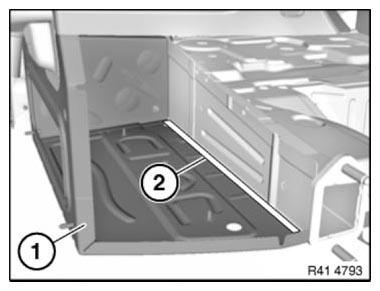

Roughly mark severance cut (1) and cut.

Open welded connections in area (2).

Remove luggage compartment floor (3).

Fig 3: Identifying Severance Cut, Welded Connections Area And Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.

View from below.

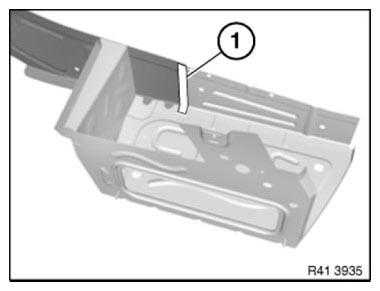

Open welded connections in area (1).

Fig 4: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

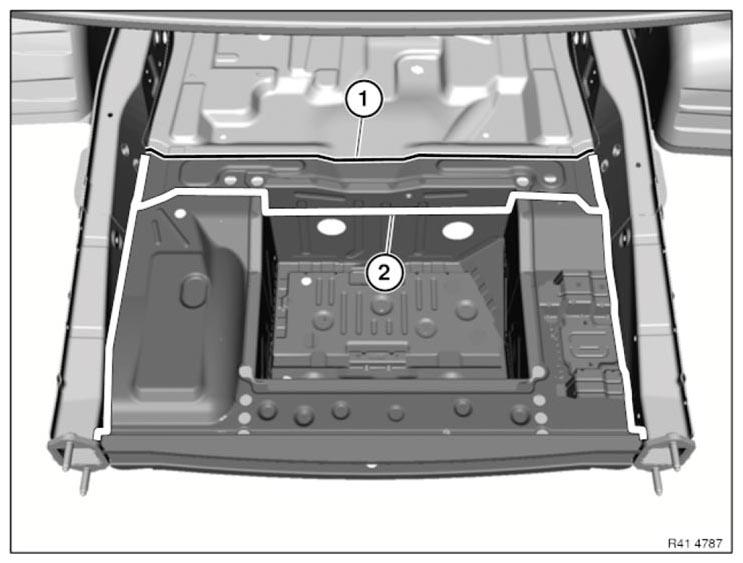

IMPORTANT: Cut outer metal panel only.

Mark severance cut (1) approx. 6 mm from edge of component of front luggage compartment floor and disconnect.

Open welded connections in area (2).

Remove trunk floor.

Installation note:

Luggage compartment floor is installed with overlap in area of severance cut (1).

Fig 5: Identifying Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

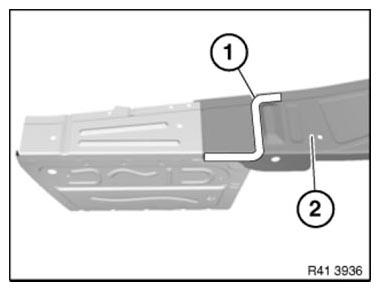

Mark severance cut (1) flush with side member and cut.

After cutting side member extension (2), open weld joints in area (3).

Fig 6: Identifying Severance Cut, Side Member Extension And Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

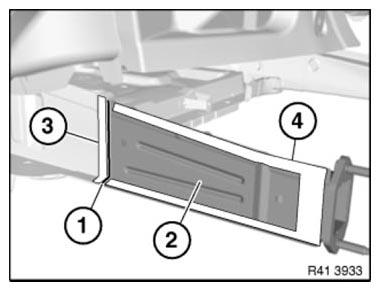

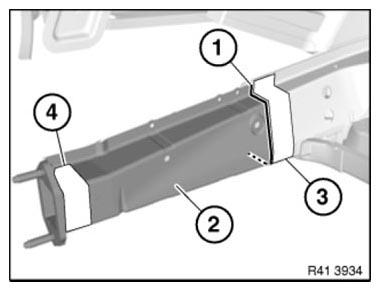

Mark severance cut (1) flush with side member and cut.

Remove side member extension (2).

Open welded connections in area (3).

Fig 7: Identifying Severance Cut, Side Member Extension And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Operation is partially described on the left side. Right side identical.

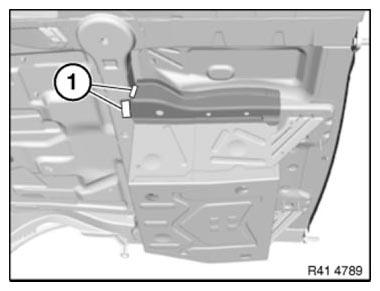

Open welded connections in area (1).

Fig 8: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove metal section (2).

Fig 9: Identifying Welded Connections Area And Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

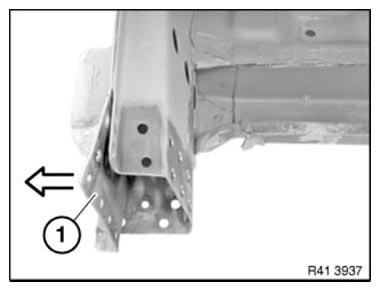

NOTE: To adjust new parts to fit, bend side member end plate (1) outwards slightly.

Adjust new parts, side members to fit with alignment bracket or universal mount.

Fig 10: Bending Side Member End Plate

Courtesy of BMW OF NORTH AMERICA, INC.

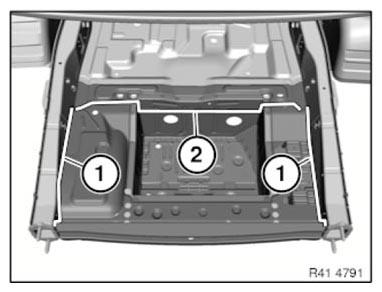

Set down luggage compartment well and adjust in combination with cross member and tail panel to fit and secure.

In areas (1) and (2) set 4.2 mm dia. holes for blind rivets.

Area	Number
1	5 of
2	8

Fig 11: Identifying Blind Rivets Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

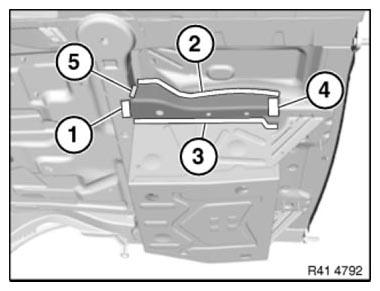

Adjust side member to fit and secure.

In areas (1) to (4), set 4.2 mm dia. holes for blind rivets.

Area	Number
1	1
2	4
3	4
4	2

Fig 12: Identifying Blind Rivets Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

In area (5) prepare new parts for MAG welding.

Adjust boot floor laterally (1) to fit and secure.

Set 5 4.2 mm dia. bore holes in area (2).

Fig 13: Identifying Boot Floor And Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 3 4.2 mm dia. bore holes in area (1).

Fig 14: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 11 4.2 mm dia. bore holes in area (1).

Remove new parts and deburr bore holes.

Fig 15: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.
