Installing luggage compartment floor, center, left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new parts and rivet with blind rivets.

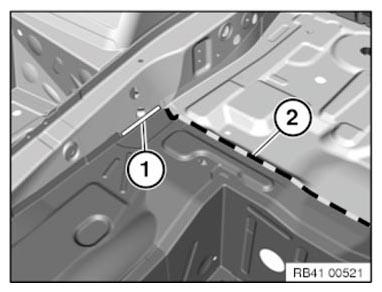

Perform MAG welding throughout to new part in area (1).

Set 20 mm MAG welds at a distance of 15 mm in area (2).

IMPORTANT: Risk of damage to adhesive area!
Avoid applying excessive heat to the neighboring adhesive areas!

Fig 1: Identifying MAG Welding Area And MAG Welds Area

Courtesy of BMW OF NORTH AMERICA, INC.

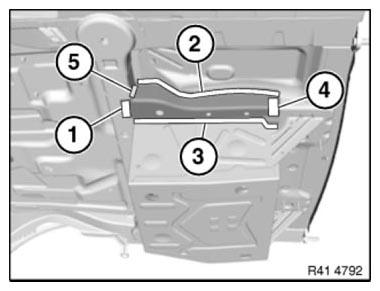

Weld new parts in area (5).

(1) to (4) = Adhesive riveted areas.

Fig 2: Identifying Weld Parts Area And Adhesive Riveted Areas

Courtesy of BMW OF NORTH AMERICA, INC.

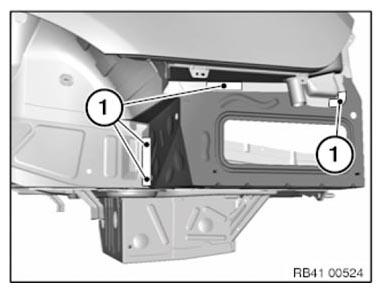

After hardening of the adhesive install 4 EMC SCREWS in the areas (1).

Fig 3: Identifying EMC Screws

Courtesy of BMW OF NORTH AMERICA, INC.
