Installation of side member

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Install new parts with alignment bracket or universal mount and weld analogue to series standard:

Extension, side member
Extension, end plate side member
Mounting, bumper

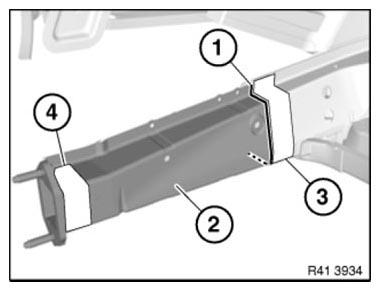

Weld extension for end plate side member (2) in areas (3) and (4) the same as series.

Fig 1: Identifying End Plate Side Member Weld Extension Areas

Courtesy of BMW OF NORTH AMERICA, INC.

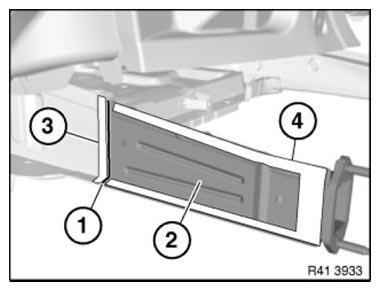

Weld extension for side member (2) in areas (3) and (4) the same as series.

Fig 2: Identifying End Plate Side Member Weld Extension Areas

Courtesy of BMW OF NORTH AMERICA, INC.
