51 16 405 Removing and installing/replacing sun protection on fond door window glass left and right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

NOTE: Shown with door removed for purposes of clarity.

Trim panel overview:

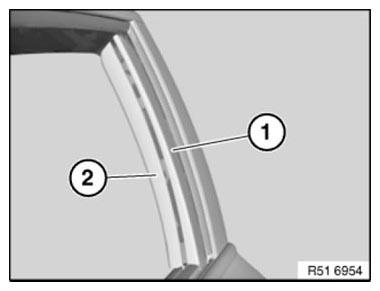

Remove outer (1) and inner (2) trim panel. Refer to the following steps.

Fig 1: Identifying Outer And Inner Trim Panel

G08471806

Courtesy of BMW OF NORTH AMERICA, INC.

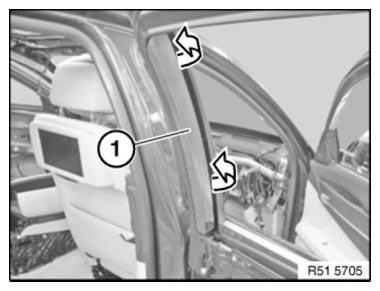

Unclip inner trim panel (1).

Fig 2: Disconnecting Inner Trim Panel

G08471807

Courtesy of BMW OF NORTH AMERICA, INC.

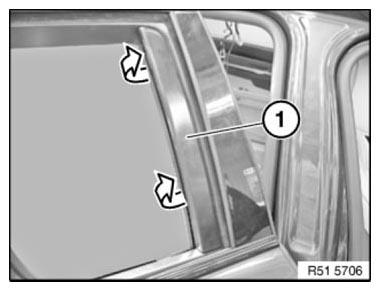

Unclip outer trim panel (1).

Fig 3: Disconnecting Outer Trim Panel

G08471808

Courtesy of BMW OF NORTH AMERICA, INC.

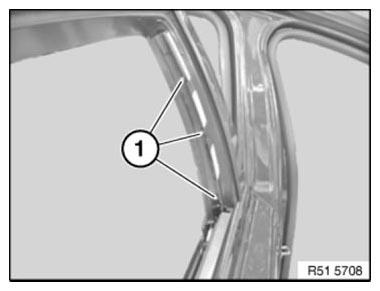

Release screws (1).

Tightening torque 51 16 17AZ .

Fig 4: Identifying Trim Panel Screws

G08471809

Courtesy of BMW OF NORTH AMERICA, INC.

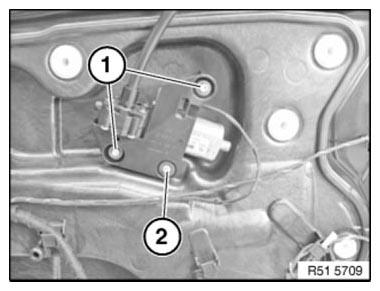

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 5: Identifying Door Window Screws

G08471810

Courtesy of BMW OF NORTH AMERICA, INC.

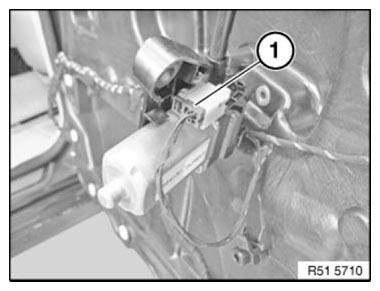

Unfasten plug connection (1) and disconnect.

Fig 6: Identifying Plug Connection

G08471811

Courtesy of BMW OF NORTH AMERICA, INC.

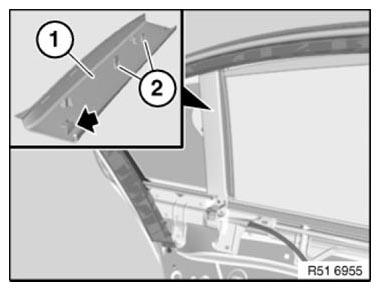

First remove trim panel (1) on top (2).

Unhook trim panel (1), pulling it up at an angle (see arrow in illustration).

Installation:

Hook (arrow) and catches (2) must not be damaged.

Fig 7: Removing Trim Panel

G08471812

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 16 18AZ .

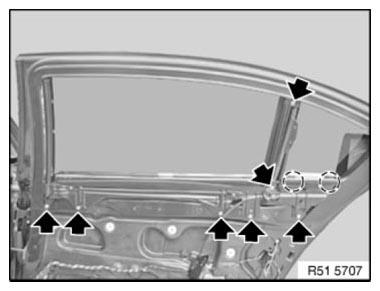

Unlatch roller sun blind in marked area and remove.

Fig 8: Locating Roller Sun Blind Screws

G08471813

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

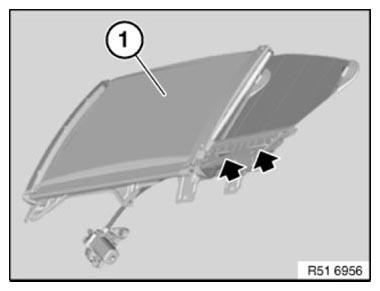

Catches of roller sun blind (1) must not be damaged.

Fig 9: Locating Roller Sun Blind Catches

G08471814
