Replace seat cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Pull trim wires (1) out of seat cover (2).

Installation note:

Slide trim wires (1) into new seat cover (2).

If necessary, cut mounting for trim threads.

(3) Seat heater cable

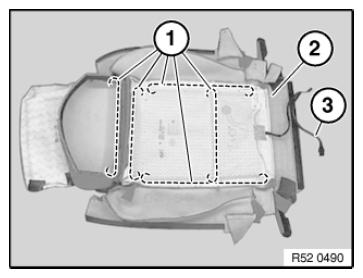

Fig 1: Identifying Trim Wires, Seat Cover And Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new retainers closed with pliers 52 0 050 .

Upholstery
Clamp
Trim wire in upholstery
Trim wire in cover
Seat cover

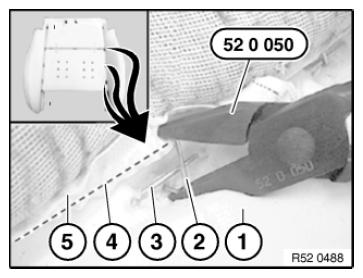

Fig 2: Bending Retainers Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
