The following work steps describe detachment of the drive flange

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

The following tools are required to pull the drive flange out of the wheel bearing. For arrangement, see graphic:

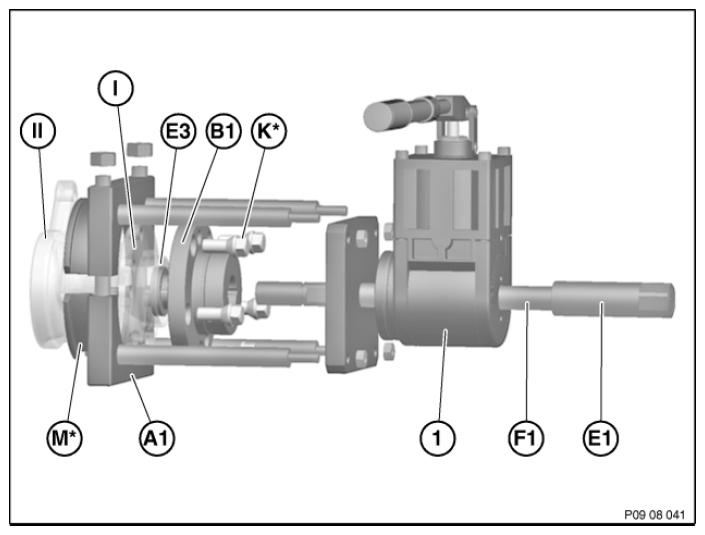

Fig 1: Pulling Drive Flange Out Of Wheel Bearing
G08504999Courtesy of BMW OF NORTH AMERICA, INC.
