62 11 280 Removing and installing/replacing instrument cluster

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 030

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE .
Disconnect both negative battery cables.
Move steering column completely towards rear.
If necessary, tape off cover and dashboard to protect against damage.
Only F25 with optional equipment sports steering wheel : Remove sports steering wheel.

Insert special tool 64 1 030 in each case in second slot, on left and right, of instrument cluster (2).

Feed special tool 64 1 030 into clamp (1) and pull downward.

Feed out instrument cluster (2) in direction of arrow.

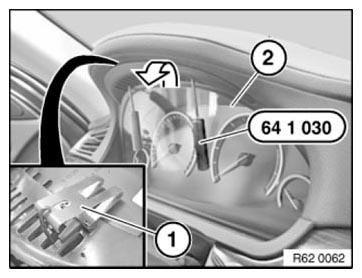

Fig 1: Removing Instrument Cluster Using Special Tool (64 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove instrument cluster (2).

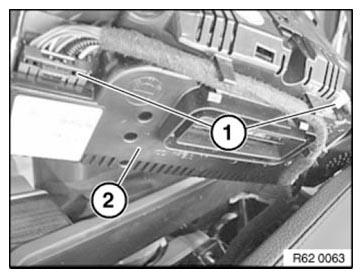

Fig 2: Identifying Instrument Cluster And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs (1) of dashboard (2) must be exactly seated in mountings of dashboard.

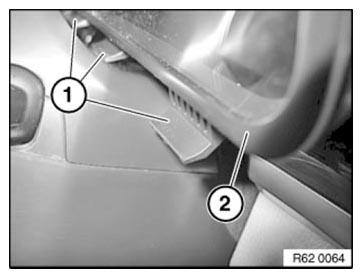

Fig 3: Identifying Dashboard And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING.

Check values for Condition Based Service (CBS) and correct if necessary.

If necessary, adjust HEAD-UP DISPLAY.
