62 30 010 Removing and installing/renewing head-up display

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

IMPORTANT: Comply with notes and notes on HANDLING OPTICAL FIBRES .
Risk of damage!
Do not scratch lens of head-up display.

Necessary preliminary work

Remove INSTRUMENT PANEL TRIM .

Release screw (1) on carrier housing (2) at bottom.

Tightening torque 62 30 1AZ .

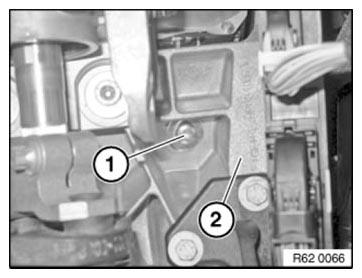

Fig 1: Identifying Carrier Housing And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sound insulation (1) from head-up display (4).

Disconnect plug connections (2).

Release screws (3).

Tightening torque 62 30 1AZ .

Carefully feed out head-up display (4) in upward direction.

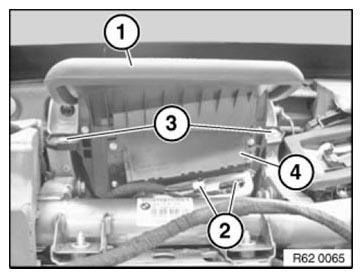

Fig 2: Identifying Sound Insulation, Head-Up Display, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean lens of head-up display.

Adjust HEAD-UP DISPLAY.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING. .
