62 30 005 Removing and installing/replacing trim for Head-Up Display

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever out trim for Head-Up Display (1) with special tool 00 9 317 at mounting points (2).

Feed cover for head-up display (1) in direction of arrow out of instrument panel trim (3) and remove.

Fig 1: Removing Head-Up Display Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining lugs (1) and (2) and sleeve (3) of cover for Head-Up Display (4) are correctly seated.

Fig 2: Identifying Retaining Lugs, Cover Sleeve And Head-Up Display

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only on F06, F12, F13:

Installation note:

Make sure retaining lugs (1) and (2) are correctly seated on cover for Head-Up Display (3).

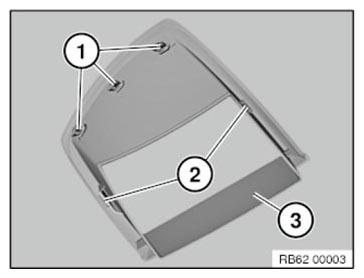

Fig 3: Identifying Head-Up Display And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
