Rear door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Area specification applies to all paint stages.

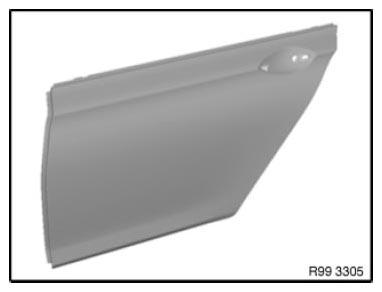

Fig 1: Identifying Paint Applying Areas On Rear Door (Paint Stage 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Additional area specification inner plate for paint stages 2 and 3.

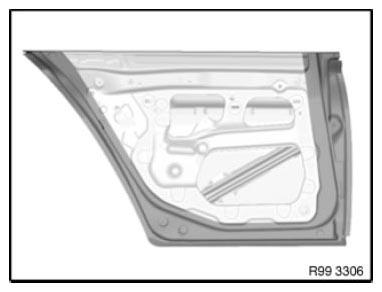

Fig 1: Identifying Paint Applying Areas On Rear Door (Paint Stage 2 And 3)

Courtesy of BMW OF NORTH AMERICA, INC.
