63 99 002 Replacing halogen bulb for high beam headlight on left

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

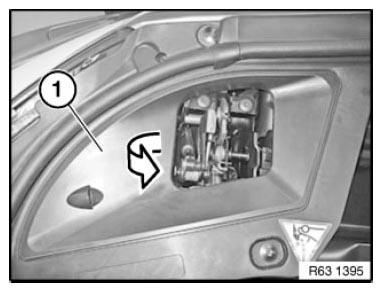

Open end cover of engine compartment lid seal mounting (1) in direction of arrow.

Fig 1: Opening End Cover Of Engine Compartment Lid Seal Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Check seal. Replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Protective cap (1) must lock correctly!

Turn the protective cap (1) clockwise to end stop (A)!

Fig 2: Turning Protective Cap Clockwise To End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

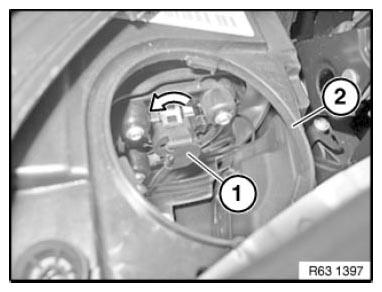

Turn bulb holder (1) in direction of arrow and remove towards rear from headlight (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

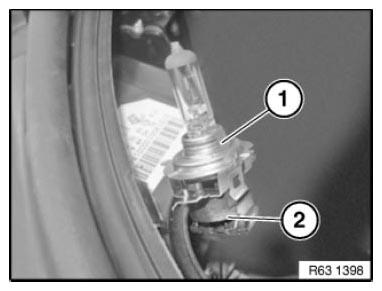

Detach bulb (1) from bulb holder (2).

Installation note:

Make sure bulb holder (2) is seated correctly.

Note BULB TYPE .

Fig 4: Identifying Bulb And Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
