63 31... Removing and installing/replacing fibre optic conductor of rear door trim panel, storage compartment

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fibre optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL .
Work station with cleaner working surface

Fibre optic conductor in storage compartment

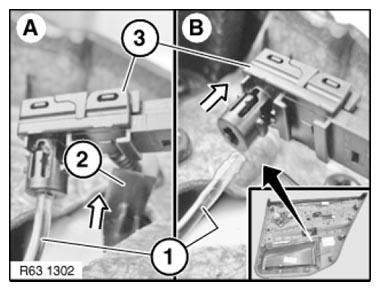

Remove LED module (3) in direction of arrow from bracket (2).
Carefully pull LED module (3) from fibre optic conductor (1).

Fig 1: Removing LED Module From Bracket
Courtesy of BMW OF NORTH AMERICA, INC.

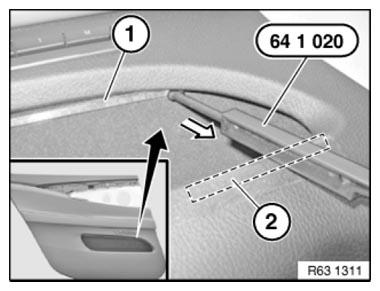

IMPORTANT: Use suitable protector (2) to avoid damaging the storage compartment.

Pull out fibre optic conductor (1) with special tool 64 1 020 and unclip.

Fig 2: Identifying Suitable Protector And Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: (Risk of fibre optic conductor (1) breaking!)

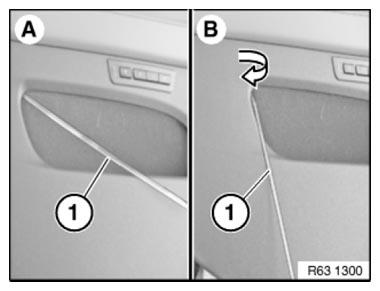

Fig 3: Turning Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

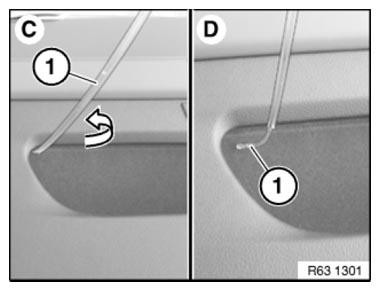

Pull downward
Turn downward towards rear side of storage compartment
Fold straight up
Feed out and remove

Fig 4: Removing Fibre Optic Conductor
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.

Fig 5: Identifying Fibre Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
