63 31... Removing and installing/replacing fibre optic conductor of door panel, top rear
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020 .
WARNING:
Fibre optic conductors are sensitive (risk of damage). Always handle carefully.
Necessary preliminary tasks
- Remove REAR DOOR TRIM PANEL .

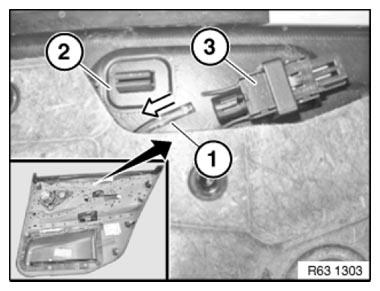

Carefully detach fibre optic conductor (1) from LED module (3) (retainer).
Installation:
LED-module (3) must lock into position (light distribution).
Upper fibre optic conductor

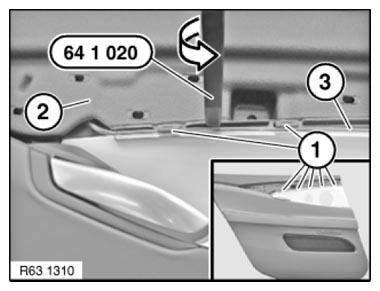

Use special tool 64 1 020 to unclip fibre optic conductor (3) from retaining clips (1) in door panel (2) and remove.
Installation:
The fibre optic conductor (3) must be securely locked in the retaining clips (1) on the door trim panel (2).
Fig 2: Uncliping Fibre Optic Conductor From Retaining Clips In Door Panel Using Special Tool (64 1 020)
Installation:
Check fibre optic conductor (1) for damage (scratches or cracks), replace if necessary.
