63 31 150 Removing and installing/replacing glovebox light

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

NOTE: Similar to graphic.

Lever out glove box light (1) in direction of arrow.

Unlock plug connection and disconnect.

Remove glove box light (1).

Replacement:

If necessary, remove bulb.
Note BULB TYPE .

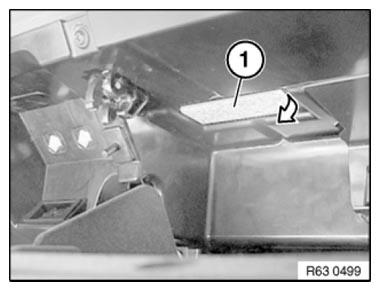

Fig 1: Removing Glove Box Light
Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) in direction of arrow and pull out of light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and engaged in light (2).

Fig 2: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb (1) from bulb holder (2) in direction of arrow.

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
