63 31 085 Removing and installing/replacing luggage compartment lamp (on rear lid)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Carefully, lever out luggage compartment light (1) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment lamp (1).

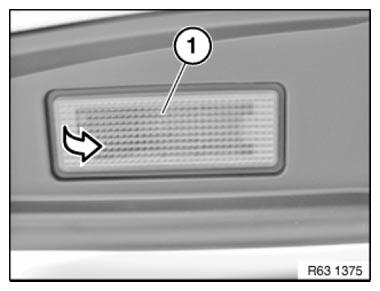

Fig 1: Removing Luggage Compartment Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove bulbs
Note BULB TYPE .
