63 31 050 Removing and installing/replacing make-up mirror light

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Lever out make-up mirror light (1) at rear in direction of arrow.

Disconnect plug connection underneath and remove make-up mirror light (1).

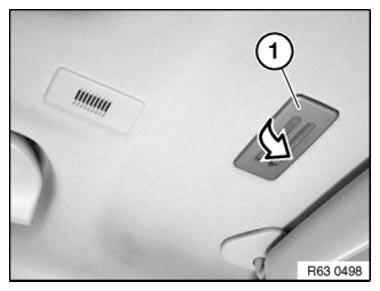

Fig 1: Removing Make-Up Mirror Light

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
Note BULB TYPE .
