63 31 003 Removing and installing/replacing complete interior roof light (rear)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

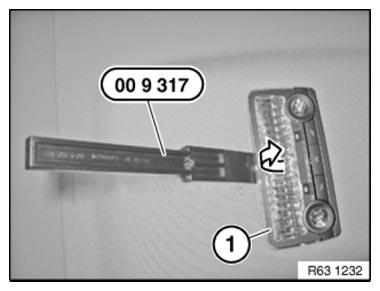

Carefully lever out interior roof light (1) in direction of arrow with special tool 00 9 317 .

Fig 1: Removing Interior Roof Light Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

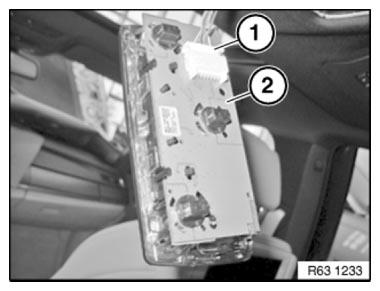

Disconnect plug connection (1) and remove roof light (2).

Fig 2: Identifying Plug Connection And Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs
Note BULB TYPE .
