63 14 120 Removing and installing/replacing rear reflector (on rear bumper trim)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

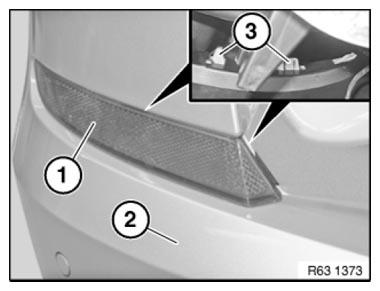

Unclip reflector (1) from bumper trim (2) in area (3).

Pull reflector (1) out of guide and detach towards rear from bumper trim (2).

Fig 1: Identifying Reflector And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

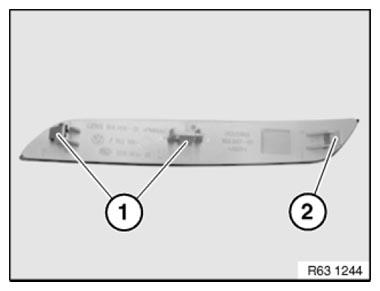

Catches (1) and guide (2) on rear reflector must not be damaged.

Fig 2: Identifying Rear Reflector Catches And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
