Install side marker

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Release liner* (1) and lightly press side marker (2) to side wall.

Check position and realign, if necessary.

The minimum contact pressure is achieved by firmly pressing your thumbs or the balls of your hands over the entire joining area (holding time approx 1 second).

Firm thumb pressure approx. 35 N/cm² .

* Liner is protective film at new side marker.

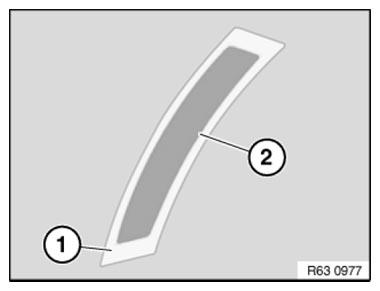

Fig 1: Identifying Side Marker With Liner

Courtesy of BMW OF NORTH AMERICA, INC.
