35 11 000 Removing and installing (replacing) complete bearing support for foot pedal

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, carry out function check.

Necessary preliminary work

Remove BRAKE SERVO

Release screws (1).

Remove control units from holder (2). Plugs remain connected.

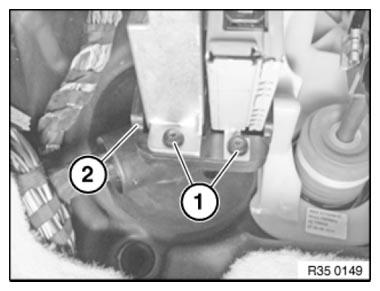

Fig 1: Identifying Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Installation note:

Replace self-locking nut.

Tightening torque 35 11 2AZ.

Remove bearing support (2).

Fig 2: Identifying Slacken Nut And Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Disconnect plug connection (2).

Replacement

Modify brake light switch
Modify holder for control units

Fig 3: Identifying Brake Light Switch Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
