Removal of engine support with wheel arch

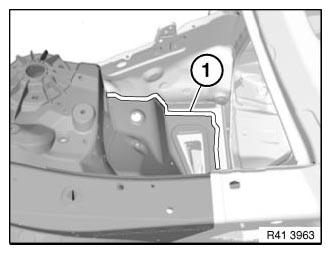

Open welded connections in area (1).

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

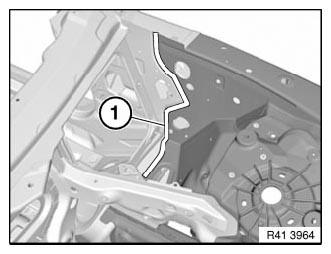

Open welded connections in area (1).

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

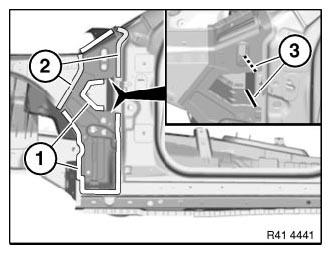

Open welded connections in areas (1).

OPEN  spot-welded adhesive joints in areas (2).

Roughly cut side frame connection along lines (3).

Release the side frame connection from the cavity sealing and remove.

Fig 3: Identifying Side Frame Connection Line, Welded Connections And Spot-Welded Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

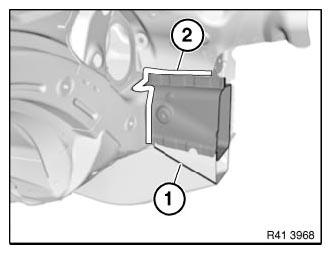

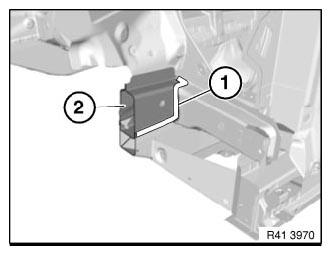

Open welded connections in area (1).

Remove cavity sealing (2).

Fig 4: Identifying Welded Connections Area And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

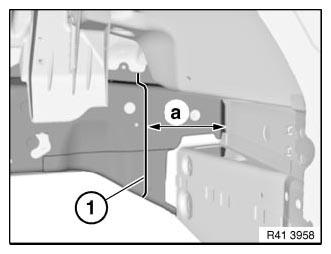

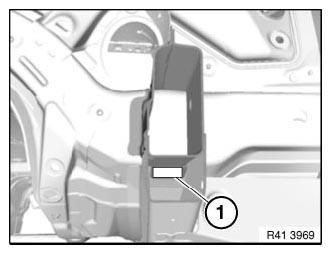

Mark severance cut (1) in accordance with dimension a and cut engine support.

Dimension a = 140 mm

Fig 5: Identifying Reinforcement Plate Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

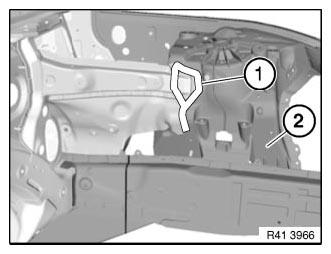

Drill out  rivet connections in area (1).

Open bonded connections in area (1).

Remove wheel arch (2) with engine support.

Fig 6: Identifying Bonded Connections Area And Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

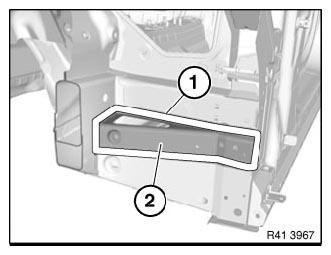

Open welded connections in area (1).

Remove metal section (2).

Fig 7: Identifying Welded Connections Area And Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

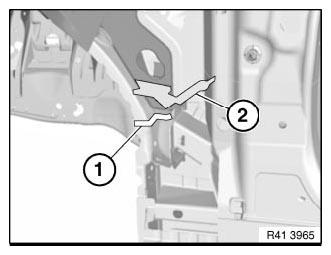

Mark severance cut (1) and cut.

Open welded connections in area (2).

Fig 8: Identifying Outer Panel Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

View of engine support from front.

Open welded connections in area (1).

Fig 9: Identifying Front Engine Support Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove part section (2).

Fig 10: Identifying Welded Connections Area And Part Section

Courtesy of BMW OF NORTH AMERICA, INC.
