41 11 015 Replacing Left Engine Support With Wheel Arch: Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures of REPAIR STAGES 3 .
Read contents of BODY, GENERAL .
Steel-aluminium composite construction is used on the vehicle. Observe specific PROCEDURE .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs!
Place vehicle on straightening bench.

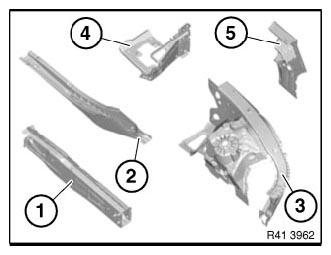

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) Engine support
- (2) Engine support, rear
- (3) Wheel arch, front
- (4) Connection, wheel arch/entrance
- (5) Connection, side frame, rear
- (6) Shaped parts, carrier support, wheel arch, front (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 25 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
