Removal of outer wheel arch section
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

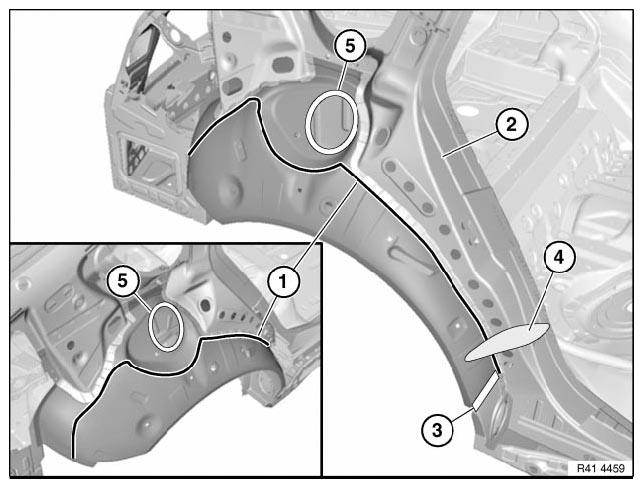

Fig 1: Identifying C-Pillar Reinforcement, Cavity Acoustic Baffle, Severance Cut Positions And Welded Connection Areas
Mark severance cut (1) next to C-pillar reinforcement (2) and cut
IMPORTANT:
Severance cut in area (5) not permitted!
Open welded connections in area (3).
Remove cavity acoustic baffle (4).
Open welded connections in area (3).
Remove cavity acoustic baffle (4).
