41 14 504 Replacing Rear Right Outer Wheel Arch Section Partial Replacement (Side Wall Removed): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to Electronic Parts Catalogue):

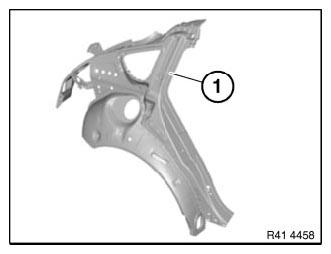

- (1) Side frame, inside rear
- (2) Shaped part, entrance, outer (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 16 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
