Removing sill section

Mark severance cut in accordance with dimension and cut.

Dimension a = approx. 60 mm from center point of 20 mm dia. hole.

Open welded connections in areas (1) and (2).

(welded connection (2) = reinforcement of jacking point on inside sill)

Remove rear entrance (3).

Installation note:

When installing, replace welded connection (2) with BONDED CONNECTION .

Apply repair welding spots in area (1) to existing welding spots on new component/vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.

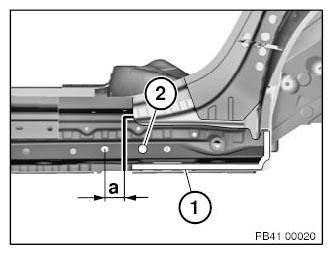

Fig 1: Identifying Welded Connections Areas And Outer Panel Cutting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Weld in REINFORCEMENT PLATE  at severance cut.

Preparation of new part

Open welded connections in area (1).

Remove sill section (2).

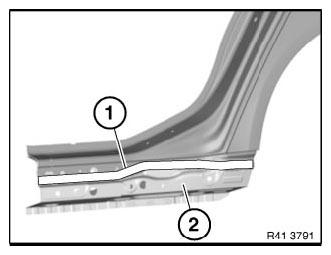

Fig 2: Identifying Welded Connections Area And Sill Section

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with vehicle and cut.

Do not grind/sand new part in area of bonding surfaces.

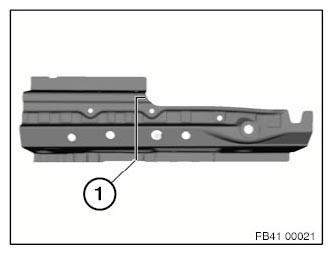

Fig 3: Identifying Cut Mark On Rear Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sill section

Apply K5 ADHESIVE  to bonding surfaces (1).

Install new part and reinforcement plate and weld in place.

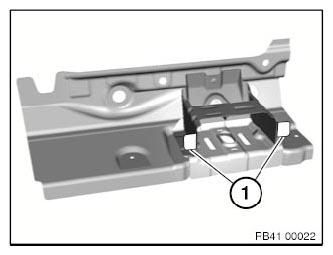

Fig 4: Identifying K5 Adhesive Applying Areas On Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.
