Removal of carrier support in front of wheel arch

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

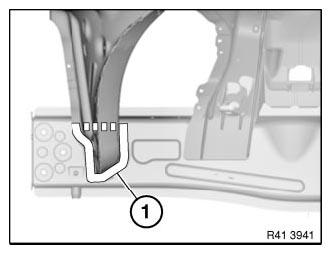

Open welded connections in area (1).

Fig 1: Identifying Carrier Support Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

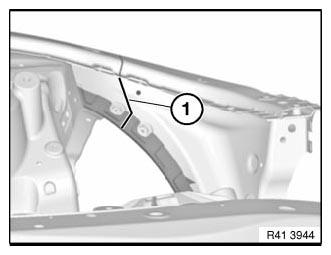

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

Fig 2: Identifying Outer Panel Severance Cut Position

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to spring strut dome!

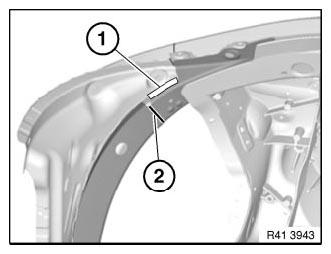

Open welded connections in area (1).

Mark severance cut (2) as pictured and cut.

Fig 3: Identifying Carrier Support Severance Cut And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

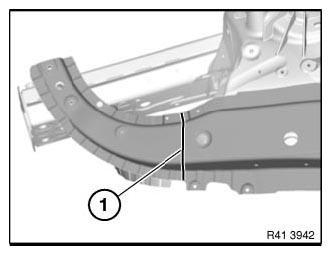

Mark severance cut (1) as pictured and cut.

Remove carrier support section.

Fig 4: Identifying Carrier Support Section Severance Cut Position

Courtesy of BMW OF NORTH AMERICA, INC.
