41 11 201 Replacing The Carrier Support Before The Wheel Arch On The Left: Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Follow procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only APPROVED SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.
Following new body parts are required (refer to Electronic Parts Catalogue):

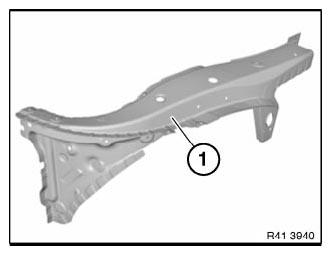

- (1) Carrier support/basis
