Removal of engine support

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

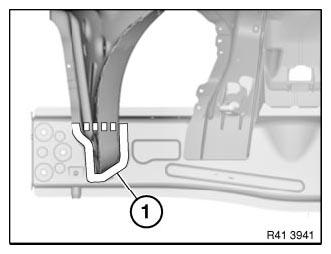

Open welded connections in area (1).

Fig 1: Identifying Engine Support Welded Connections Area

G08476145

Courtesy of BMW OF NORTH AMERICA, INC.

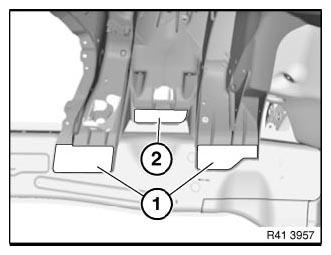

Drill out rivet connections in areas (1) and (2).

IMPORTANT: Do not damage aluminum spring strut dome!
Drill diameter max. 6.8 mm.

Fig 2: Identifying Rivet Holes Drill Areas

G08476146

Courtesy of BMW OF NORTH AMERICA, INC.

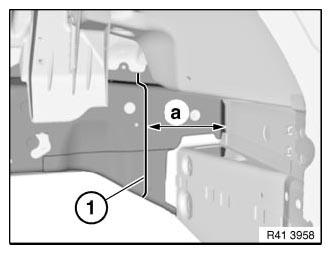

Mark severance cut (1) in accordance with dimension a and cut engine support.

Dimension a=140 mm

Fig 3: Identifying Engine Support Cutting Position

G08476147

Courtesy of BMW OF NORTH AMERICA, INC.

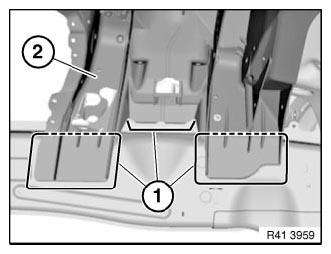

Roughly mark severance cuts (1) and cut.

IMPORTANT: Do not damage aluminum spring strut dome (2)!

Fig 4: Identifying Aluminum Spring Strut Dome And Severance Cut Marks

G08476148

Courtesy of BMW OF NORTH AMERICA, INC.

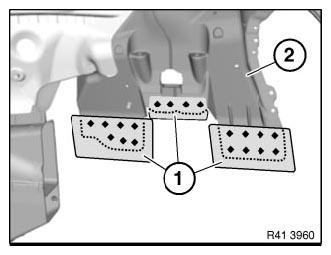

Heat ADHESIVE AREAS with hot air blower and release sheet sections (1) from spring strut dome.

IMPORTANT: Do not damage aluminum spring strut dome (2)!

Fig 5: Identifying Sheet Sections And Aluminum Spring Strut Dome

G08476149

Courtesy of BMW OF NORTH AMERICA, INC.

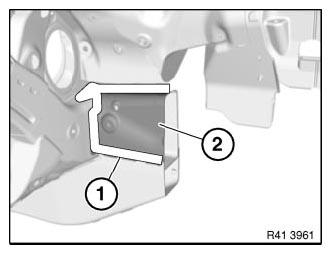

Open welded connections in area (1) and remove engine support section (2).

Fig 6: Identifying Engine Support Section And Welded Connection Area

G08476150

Courtesy of BMW OF NORTH AMERICA, INC.
