41 11 091 Replacing Left Engine Support In Front Of Bulkhead: Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedure of REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Steel-aluminium composite construction is used on the vehicle.
Observe specific procedure See 41 00... OPENING ADHESIVE BONDS , 41 00... BONDING ALUMINUM ON STEEL or 41 00... OPENING RIVETED JOINTS .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

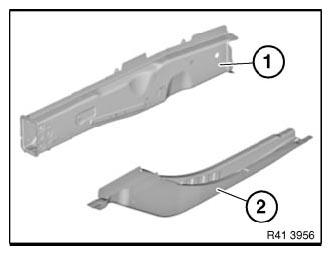

Following new body parts are required (see Electronic Parts Catalogue):
- (1) Engine support
- (2) Engine support, rear
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 19 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
