41 14 504 Replacing Rear Right Outer Wheel Arch Section Partial Replacement (Side Wall Removed)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Procedure OBSERVE repair stage 2!

Following new body parts are required (refer to Electronic Parts Catalogue):

(1) Side frame, inside rear
(2) Shaped part, entrance, outer (not shown)

Following CONSUMABLES are required:

Material	Quantity
Adhesive K5a	1
Blind rivets N3	16
Cleaning agent R1	1
Cavity sealing wax remover	1
Sealant D1

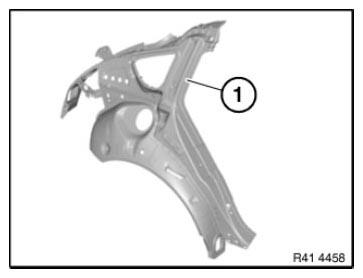

Fig 1: Identifying Inside Rear Side Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of outer wheel arch section

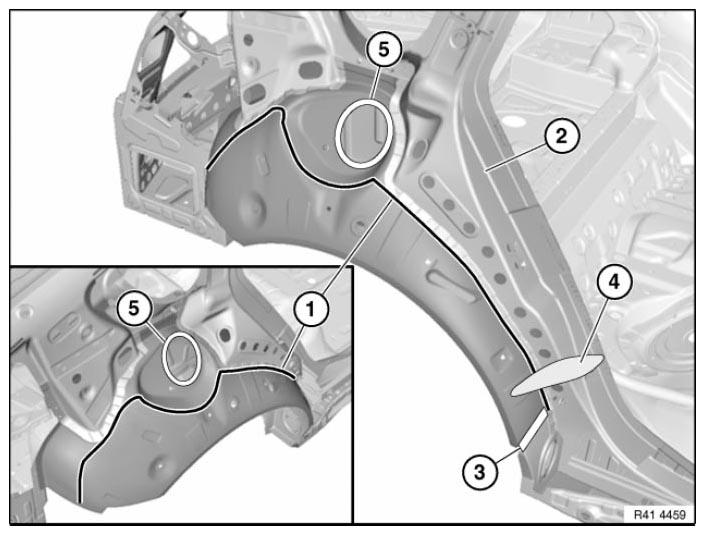

Fig 2: Identifying C-Pillar Reinforcement, Cavity Acoustic Baffle, Severance Cut Mark And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) next to C-pillar reinforcement (2) and cut

IMPORTANT: Severance cut in area (5) not permitted!

Open welded connections in area (3).

Remove cavity acoustic baffle (4).

Preparation of new part

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.

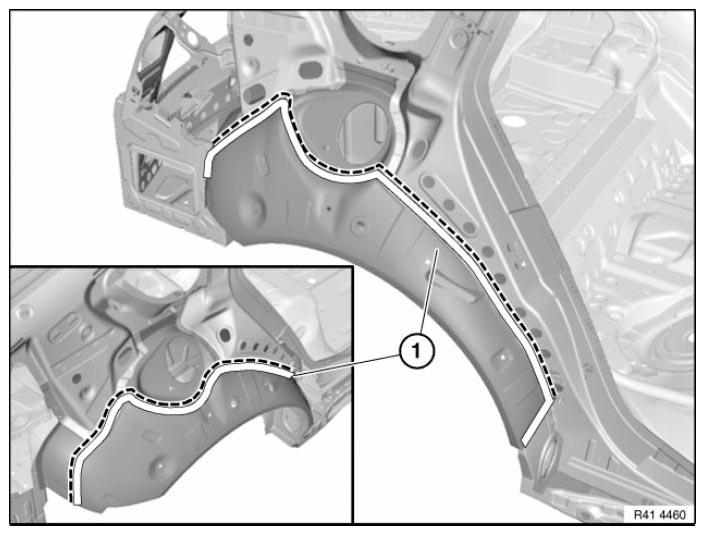

Fig 3: Identifying Wheel Arch Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts in combination with side wall to fit and secure.

NOTE: Side panel omitted for clarity.

Set sixteen 4.2 mm dia. holes for blind rivets N3 in bonding surfaces (1).

Remove new part and deburr holes.

Installation of outer wheel arch section

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Apply sealant to CAVITY SEALING .

Install and rivet wheel arch outer part in connection with side panel.
