41 14 500 Replacing Outer Section Of Left Or Right Rear Wheel Housing (Side Panel Removed): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Follow procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific procedure See 41 00... SPOT-WELD BONDING STEEL COMPONENTS or 41 00... OPENING ADHESIVE BONDS .
Use only approved SPOT-WELDING APPARATUS for repairs!

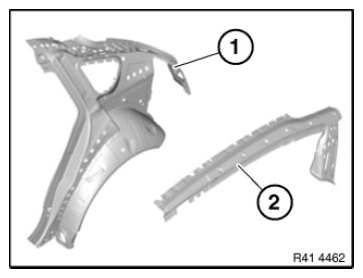

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) Side frame, inside rear
- (2) C-pillar reinforcement
- (3) Shaped parts, entrance (not pictured)
