Installing door post, front

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Clean bonding surfaces (1) with cleaning agent R1.

Apply sealant to cavity sealing See 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) or 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) (2).

Apply adhesive to bonding surfaces.

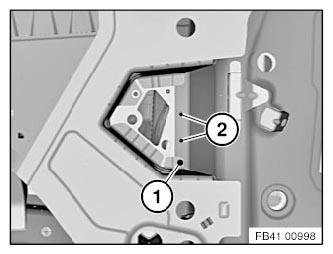

Fig 1: Identifying Bonding Surfaces And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surfaces with cleaning agent R1.

Install new parts and reinforcement plates with alignment bracket or universal mount.

At the same time, make sure water drain hose of slide/tilt sunroof is correctly fitted.

In areas (1), rivet new part with blind rivets N7.

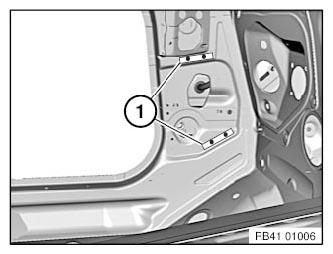

Fig 2: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1), rivet new part with blind rivets N7.

Weld new part in area (2).

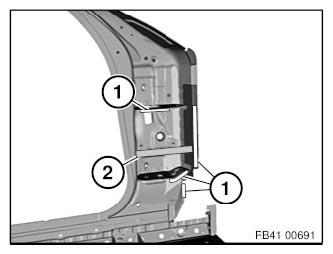

Fig 3: Identifying Blind Rivets N7 And Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Install side frame connection new part and rivet with blind rivets.

Area	Blind rivet N7	Blind rivet N3
1	1
2		2

Weld new parts in the remaining joint areas.

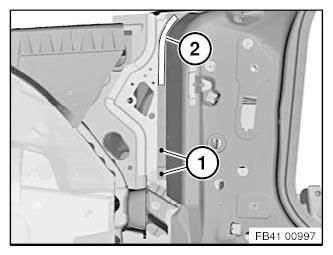

Fig 4: Identifying Blind Rivets N7 And N3 Areas

Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Weld new part in the remaining joint areas.

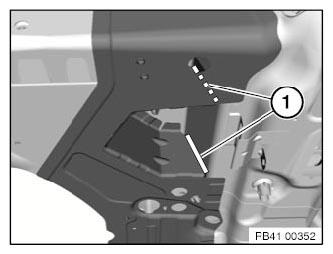

Fig 5: Identifying Component MAG-Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.
