41 11 300 Replacing Cover For Longitudinal Member With Left And Right Door Pillar (Partial Replacement B-Pillar): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

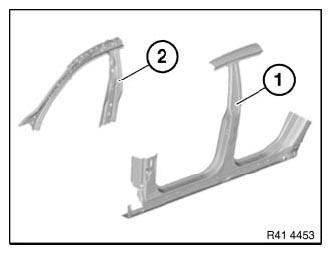

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) B-pillar with entrance
- (2) Inside front side frame
- (3) Adhesive K1 See 41 00... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOGUE) or 41 00... NOTES ON ADHESIVE K1 (not shown)
