Removing rear trim panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

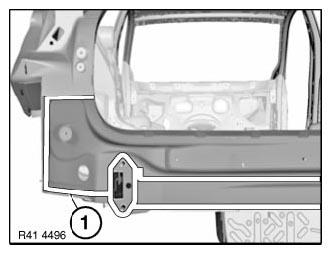

Operation is partially described on the left side. Right side identical.

Open welded connections in area (1).

Fig 1: Identifying Tail Panel Section Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

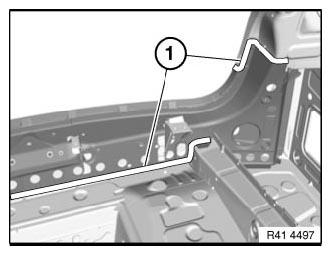

View from vehicle interior:

Open welded connections in areas (1).

Fig 2: Identifying Tail Panel Section Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

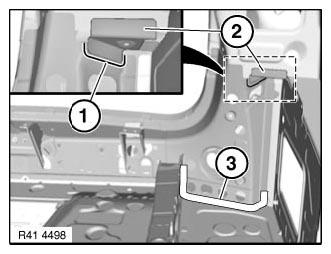

Mark severance cut (1) at edge of component (2) and cut.

Open weld joints in area (3) and remove rear trim panel.

Fig 3: Identifying Rear Trim Panel Severance Cut, Component Edge And Welded Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.
