Installing rear trim panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces (1).

When inserting rear trim panel, make sure there is sufficient adhesive on bonding surfaces.

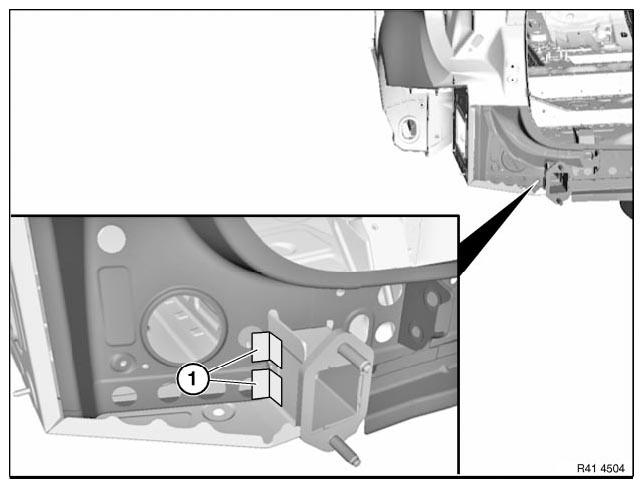

Fig 1: Identifying Sheet Metal Angle On Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Fit inner rear trim panel and rivet with sheet metal angle (1).

Fit outer rear trim panel and secure.

Rivet new part in areas (1) and (2).

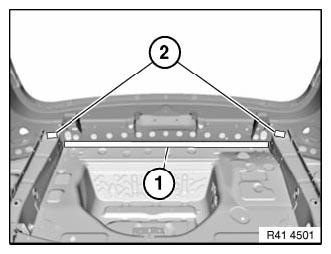

Fig 2: Identifying Rear Trim Panel Riveted Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fit sheet metal angle (1).

Rivet new parts in areas (1) to (3).

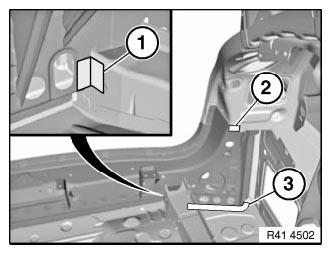

Fig 3: Identifying Sheet Metal Angle And Riveted Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet new parts in areas (1) to (4).

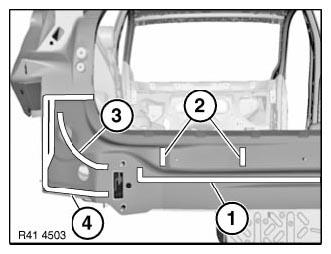

Fig 4: Identifying Tail Panel Sections Riveted Areas

Courtesy of BMW OF NORTH AMERICA, INC.

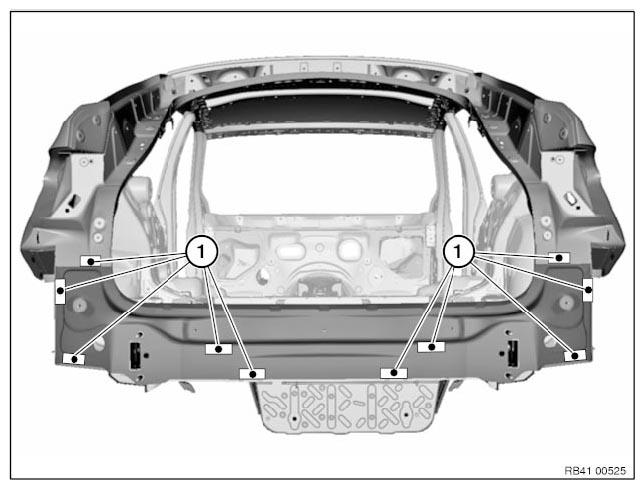

Fig 5: Identifying Punch Rivets N4 Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Use punch rivets N4 in areas (1) and (2):

Area	Number
1	7
2	17

IMPORTANT: No blind rivets may be used in areas (4)! Areas (4) = 10 cm

Press rear trim panel in areas (1) and remove emerging adhesive.

Then install carrier for bumper trim to secure rear trim panel carrier.

IMPORTANT: Prevent emerging adhesive from coming into contact with cross-member!
Do not use any cleaning agents containing solvents.

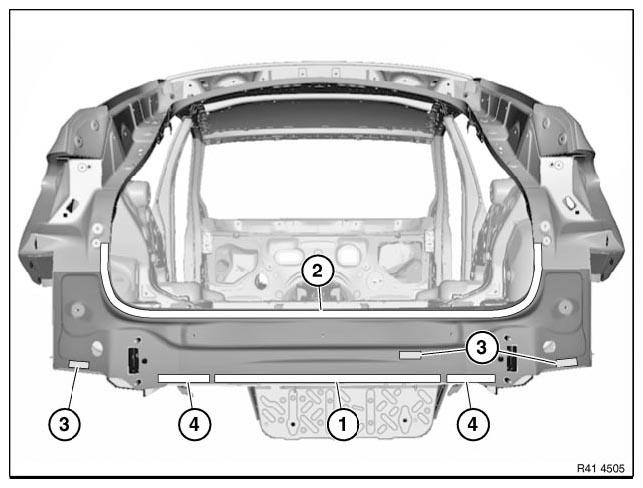

Fig 6: Identifying Rear Trim Panel Adhesive Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

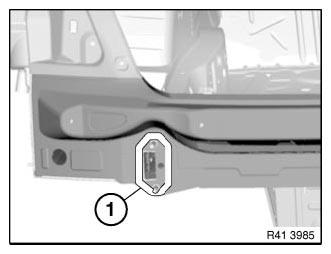

Fig 7: Identifying EMC Screws

Courtesy of BMW OF NORTH AMERICA, INC.

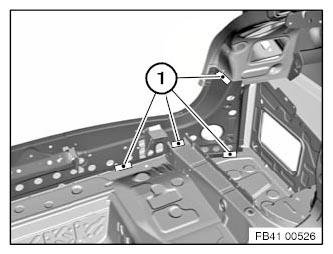

After hardening of the adhesive install 10 EMC SCREWS in the areas (1).

After hardening of the adhesive, install 4 EMC screws in the areas (1).

Fig 8: Identifying EMC Screws Installing Areas

Courtesy of BMW OF NORTH AMERICA, INC.
