Removing rear trim panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

IMPORTANT: Cut outer metal panel only.

Mark cutting line (1) on lower edge of sheet metal panel (2) and cut out.

Open welded connections in area (3).

NOTE: Changed joining sequence: Install new component from the outside overlapping in area (1).

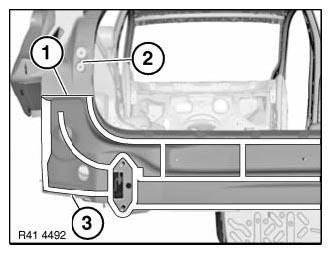

Fig 1: Identifying Sheet Metal Panel With Cutting Line And Welded Connection Area
G08476437Courtesy of BMW OF NORTH AMERICA, INC.
