41 34 038 Replacing Outer Tail Panel Section: Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Observe (REPAIR STAGE 2) procedure!
STRIP DOWN vehicle
The following new body parts are required (refer to Electronic Parts Catalogue):

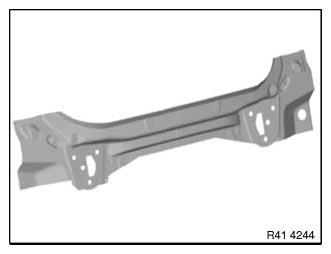

- (1) Rear trim panel
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| R1 cleaning agent | 1 |
| Blind rivets N3 | 37 |
| Punch rivets N4 | 20 |
| EMC screws | 10 |
| Sealant D1 | |
| Cavity wax remover |
