New part preparation
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.
NOTE:
On vehicles with a SENSOR FOR LANE CHANGE WARNING
, also check the bumper guide for correct seating.
IMPORTANT:
Version with automatic tailgate activation:
Risk of damage to spindle drive: only move rear lid slowly by hand.
Risk of damage to spindle drive: only move rear lid slowly by hand.

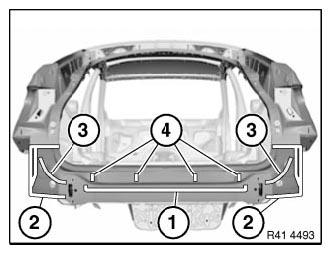

In areas (1) to (4) set 4.2 mm dia. holes for blind rivets:
| Area | Number |
|---|---|
| 1 | 9 |
| 2 | 9 of |
| 3 | 3 of |
| 4 | 4 |
Remove new part and deburr holes.
IMPORTANT:
Do not grind/sand new part in area of bonding surfaces.
