41 12 557 Replacing Middle Luggage Compartment Floor Stripping Operations (Tail Panel Removed)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove exhaust system (FR number: 1800020)
Remove heat shield
Remove front and rear spare wheel well trim panel (FR-number: 51 47)
Remove battery (FR number: 61 21 010)
Remove air supply system (FR number: 37 22 540)
Remove left and right trailing links (FR number: 51 71 482)
Remove cross reinforcement (FR number: 51 71 480)

Emergency unlocking for electromagnetic parking brake:

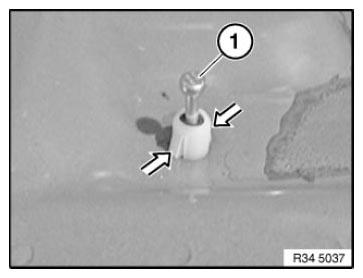

Press both detent lugs together and press cable for emergency release (1) downwards.

Fig 1: Pressing Emergency Release Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

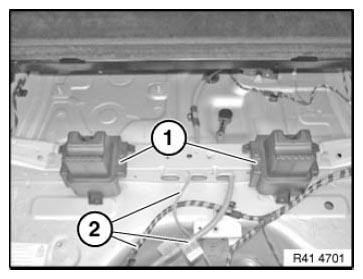

Release screws and remove supports (1).

Release positive battery leads (2) and lay to one side.

Fig 2: Identifying Supports And Positive Battery Cables

Courtesy of BMW OF NORTH AMERICA, INC.
