41 31 001 Replacing Outer Roof Skin (Version With Panorama Glass Roof): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to Electronic Parts Catalogue):

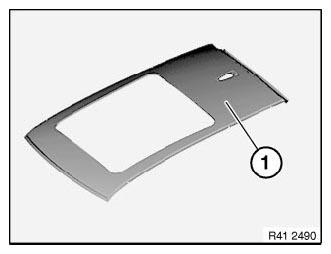

- (1) Roof outer skin panel, panorama glass sunroof
- (2) Star screws: 4 pieces order no.
07 14 7 153 767 (not shown)
- (3) Blind rivets, roof outer skin on roof frame: 2 pieces order no. 07 14 9 202 131 (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 2 |
| Blind rivets N3 | 4 |
| Punch rivets N4 | 15 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
