41 63 000 Removing And Installing Flap For Fuel Filler Neck

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

Open fuel filler flap.

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.

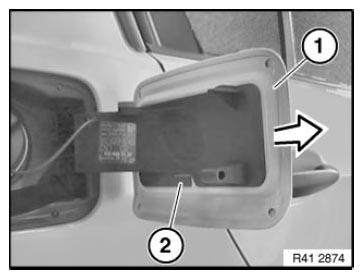

Fig 1: Removing Lock And Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
