41 12 651 Replacing Left Luggage Compartment Floor Stripping Operations (Tail Panel Or Side Panel Removed)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Disconnect battery negative lead (FR number: 6120600)
Remove rear left wheel well cover (FR number: 5171041)
Remove exhaust system (FR number: petrol engine 1800020, diesel engine 1800018)
Remove heat shield
Remove left luggage compartment floor trim panel (FR number: 5147101)
Remove rear left floor panel (FR number: 5147395)
Remove left luggage compartment wheel arch panel (FR number: 5147151)

Release nut/expanding rivets and remove both supports (1) for floor panels.

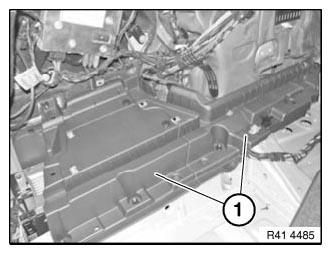

Fig 1: Identifying Floor Panel Supports

G08476256

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and lay TV module (1) to one side.

Release tank vent valve (2) and lay to one side.

Partially unclip wiring harness (3).

Remove insulating mat (4).

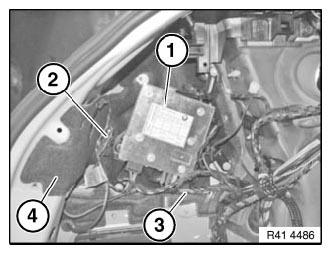

Fig 2: Identifying TV Module, Tank Vent Valve, Wiring Harness And Insulating Mat

G08476257

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plugs for control units (1) and disconnect.

Release nuts for control unit holder and remove holder with control units.

Partially unclip wiring harness (2).

Unclip cover (3) and remove.

Unclip ventilation grille (4) and remove.

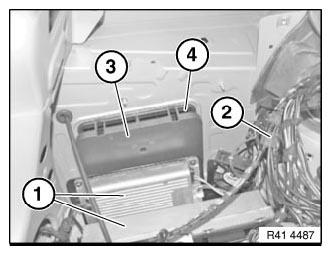

Fig 3: Identifying Control Units, Wiring Harness, Cover And Ventilation Grille

G08476258

Courtesy of BMW OF NORTH AMERICA, INC.
