Removal of luggage compartment floor

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Operation described predominantly on the left side. Right side identical.

View from below.

Open welded connections in areas (1).

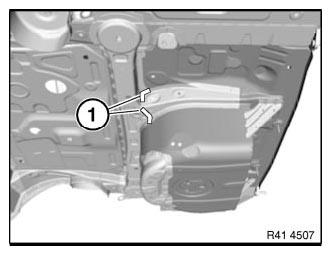

Fig 1: Identifying Luggage Compartment Floor Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.

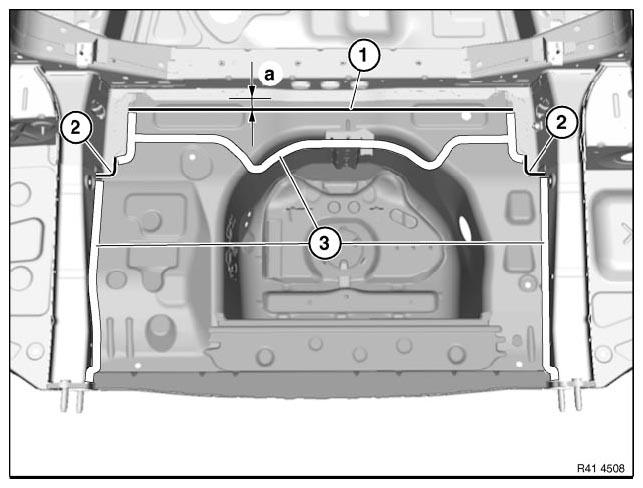

Fig 2: Identifying Luggage Compartment Floor, Severance Cut And Welded Connection Areas (Middle Section)

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension a and cut.

IMPORTANT: Cut outer panel only.

Measurement a = 20 mm

Mark severance cuts (2) at component edge and cut.

Open welded connections in areas (3).

Remove trunk floor.

NOTE: The new part is installed overlapping in the areas of the severance cuts.
